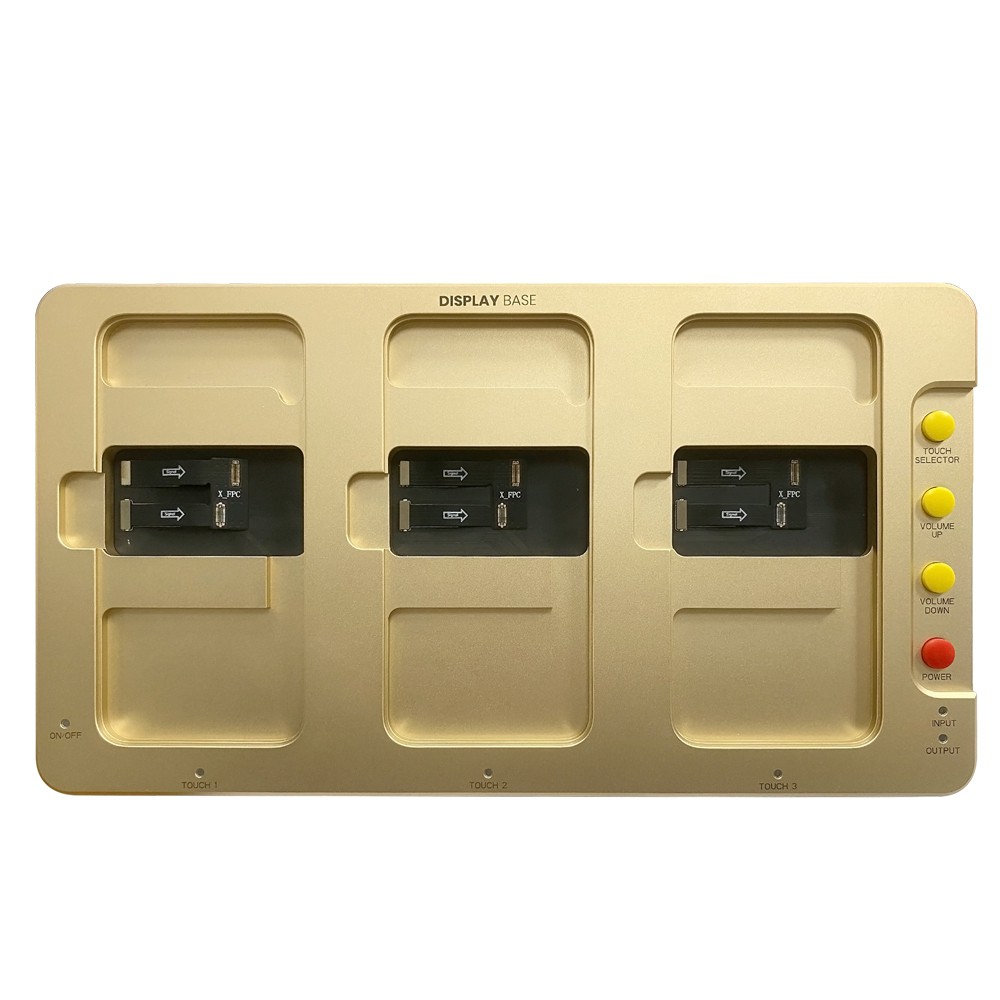

DL C100 Display Tester Base for iPhone X

Click on above image to view full picture

More Views

To get better price,Learn more about Business VIP

Availability: In stock

Only 7 left

Retail $880.50 +GST

Business

Quantity:

Having problem add to cart?

SKU: DL-DISPLAY-BASE

ITEM ID: 56973

Stock Sydney: Low Stock (21 Apr 8:55am updated)

Stock Melbourne: Low Stock (21 Apr 8:55am updated)

Warranty: 30-Days Warranty

Add Your Review

Email to a Friend

Details

Instructions:

1. Open the package, take the display base out
2. Prepare the iPhone X test board. Turn the display base around and take off the 4 screws from the white back cover. Put the iPhone X test board in and connect the TP cables (4 connectors in total). Put the white back cover on and tighten the screws.
3. Take the power cable out and connect the power adaptor to the socket (220V) and connect the round end to the display base.
4. Place the display base on a flat table. The power switch locates at the left bottom side at the back. Turn it on and hearing the beep means the power is on. Connect the LCDs at the front side (based on customer’s request: they can be different or same types of iPhone X LCDS).

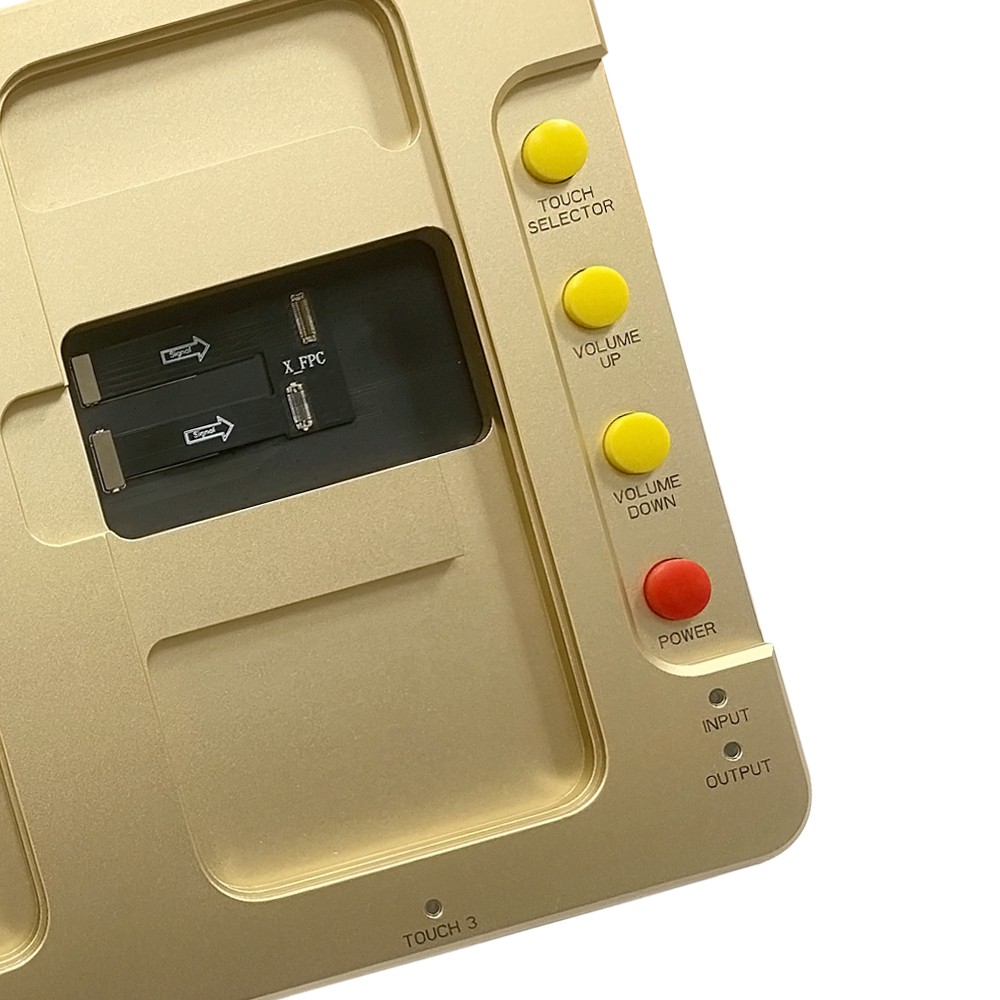

5. Press the red button to turn on the iPhone X test board (Make sure it is fully charged or connect the test board with power supply). Wait for 1 – 2 minutes to get the test board ready. When the test board turned on, three connected LCDs will display the same image simultaneously. Only one LCD can be operated at once, press the first button (TOUCH SELECTOR) to switch the operating LCD. (LCD can be connected with the Internet by WIFI to demonstrate pictures and videos)
6. Voice volume can be adjusted by the second (VOLUME UP) and third buttons (VOLUME DOWN).

Specifications

Warranty

30-Days Warranty
